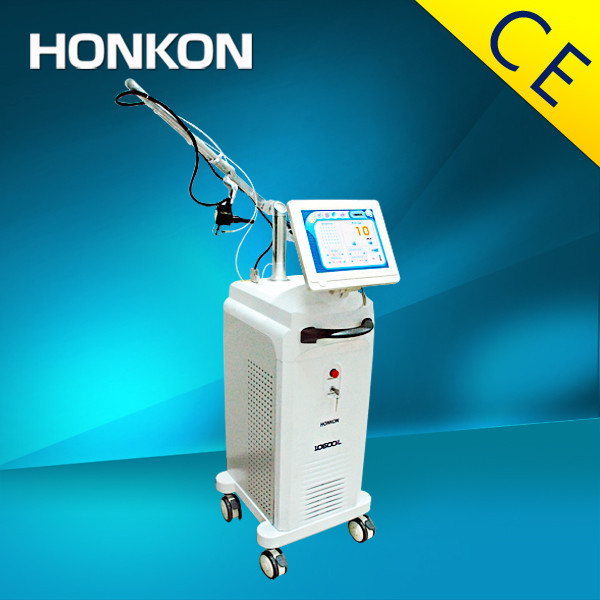

Painless High Power Co2 Fractional Laser Machine for Remove Surgical Scars AC 110V 60HZ

Painless High Power Co2 Fractional Laser Machine for Remove Surgical Scars AC 110V 60HZ

  • Painless High Power Co2 Fractional Laser Machine for Remove Surgical Scars AC 110V 60HZ
Painless High Power Co2 Fractional Laser Machine for Remove Surgical Scars AC 110V 60HZ
Product Details:
Place of Origin: Beijing China
Brand Name: HONKON
Certification: Medical CE
Model Number: YILIYA-10600AL
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Carton and Aluminum box
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Treatment Ways: Fractional Laser Function: Surgical Scars Removal , Pigment Removal
Wavelength: 10600nm Laser Aiming Beam: 635nm Laser
Laser Type: RF-excited CO2 Laser Spot Size: 100um-2000um
High Light:

scar removal machine

,

co2 fractional laser skin resurfacing



Painless High Power Co2 Fractional Laser Machine for Remove Surgical Scars AC 110V 60HZ






treatment theory:
CO2 Fractional laser penetrates skin and forms tiny thermal channels. This creates some ablative and thermal effect only on these channels (a micro-injury) without damaging the surrounding tissue. The tissues surrounding the micro-injuries (about 15-20% of the treatment area) start the healing process. As the collagen remodels, the skin is tightened, scars and pigmented lesions are improved as well.




Application

l Application Range of Fractional treatment handpiece:

1. Large pores, Fine lines, Skin tightening and whitening, Skin loosen(Deep Wrinkles), Stretch marks.
2. Various Scars:Burn Scars, Acne Scars, Surgical Scars and Keloid.Pigmented skin lesions:Chloasma, Freckles, Age spots, Sun spots, CAMLS.
3. Reconstruction of photoaging skin.


1. Via multiple handles it can be adapted to Gynecology, ENT, Neurology and general surgery.
2. In Cosmetic Surgery, it can be adapted to incisions for Blepharoplasty, Skin Tags and Ingrown Nails, Compound Nevus and Intra Dermal Nevus etc.


YILIYA-10600AL Advantages:

1. RF-excited laser system ensures stable performance.
2. Windows CE system facilitates a remote upgrade.
3. Ultrapure, CW, fractional laser output modes extends treatment range.
4. Patent adjust with spot size 80 to 2000μm adjustable provides a full spectrum of ablation.
5. Max. 30W power output, Min. 50μm spot size enables 4mm penetration to release treatment painlessly and complications.
6. Max 3cm*3cm, Min. 0.25cm*0.25cm treatment area provides a fast and precise treatment.


YILIYA-10600AL Specification

Laser Type RF-excited CO2 laser Wavelength 10600nm
Beam Delivery 7-joint arm Maximum Output Power 30W/20W/10W(optional)
Optical Beam Quality TEM Spot Size 80um-2000um
Power of the Aiming Beam ≤5mW Aiming Beam 635nm
Scanning Mode Randomized Scanning Laser Operating Mode Ultra Pluse, CW, Fractional
Cooling Air Cooling Pulse Energy 10mj-200mj(stepping:2mj)
Spot Pattern

Triangle/Square/Rectangle/
Rhombus/Round

Pulse Interval 2ms-100ms(stepping:1ms)
Scan Area

5*5mm, 2.5*2.5mm, 1.25*1.25mm
30*30mm, 20*20mm, 10*10mm

Dimensions(before  packaged) 650mm*340mm*760mm
Spot Density 36spots/cm², 144spots/cm², 576spots/cm² Dimensions(After Packaged) 760mm*455mm*975mm
Power Supply AC220V  50HZ / AC110V 60HZ
