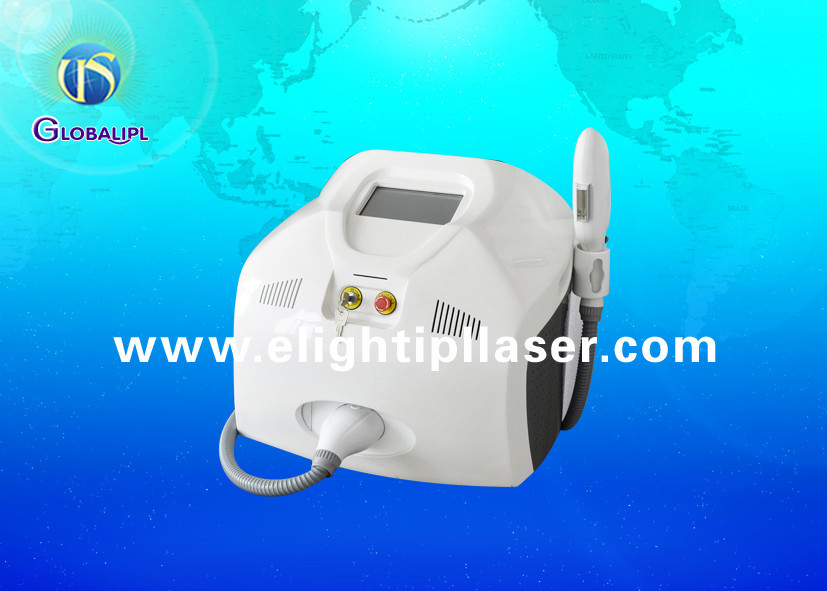

Portable Lip / Beard IPL Hair Removal Machine And Pigment Therapy 1-50J/cm2 60Hz





Portable Lip / Beard IPL Hair Removal Machine And Pigment Therapy 1-50J/cm2 60Hz





Specification

Basic Parameters
Filters	5 pcs: 480nm, 530nm, 590nm, 640nm, 690nm standard
Energy density	1-50J/cm2
Language available	English
Frequency	1s,2s,3s,4s
No. of Pulse	1-6
Size of Spot	13x30mm2 standard (13x40mm2 or 15*50mm2 for optional)
Cooling system	Japanese Semiconductor + Water +Wind Cooling +Cooling Gel
Voltage	220V (110V)/15A, 50Hz (60Hz)
Machine Specifications
Display	7.4 inch key-touch blue screen
Handpiece No.	1 H1: filter changeable handpiece
Output power	1200W
Package Size	59x59x57cm
Gross Weight	35kgs



Theory



IPL (Intense Pulsed Light) is a kind of light with high energy and broad wavelength, According



to the principle of IPL photorejuvenation technology, intense pulsed light with broad spectrum



affects pigmentations, broken capillary vessels and hair follicles. Photothermic and photochemical



action will be triggered by the radiation of IPL, pigments is shattered and eliminated out of body by



metabolism. Meanwhile, IPL will also give a boost to collagen production, which can make the skin



more flexible and smooth and remove fine wrinkles. The light with long wavelength can easily pass



through epidermis to the hair follicles in the deep part of the skin. At the targeted area, high



temperature occurs to destroy follicles and hair shaft and prevent regrowth of new hair. With a



series of treatments, IPL technology can help restore a more youthful appearance without downtime



and side effect





Applications:



1). Hair removal

2). Skin rejuvenation

3). Wrinkle Removal

4). Pigment therapy

5). Vascular therapy

6). Breast lifting up





Features:



1.Joint part adopts the most advanced "plug and play" technology, integrating the water and



electricity protection automatically, makes installation more easy, safe and reliable

2. Special technique, automatic energy adjustable system

3.7.4 inch color touch screen operating, simple and convenient

4. UL standard independently adjustable three kinds of pulses design, obeying the clinic ten



years experiences

5. Humanized menu, easy operation

6. Water level, water flow and water automatic detection greatly increases machines'  life



expectancy and safety

7. Hand-touch, foot-touch and switches satisfy your different operating habits

8. Multilingual arbitrary languages, anywhere in the world can be easily grasped

9. Smart system clock makes the operator control the time easily



10. Alarm system:



     1). Water temperature alarm system: the water temperature will rise as long



          continuous working. For a good cooling result and more safe protection, we set



          up the water temperature as 55 ℃. when the actual water temperature over 55



          ℃, the machine will automatically stop all working immediately and continuous



          sound warning. After 15-30 minutes rest, can restart the normal work.



     2). Water flow alarm system: you know the equipment can work well under good



          water circulation, or seriously can damager some parts or machine; so an



          intelligent water flow alarm system is more important. If no water or little water



          inside machine, or bad  water circulation, the machine will automatically stop



          all working immediately and sound warning at the same time. In this case, it



          will protect the operator and machine at the first time.



11. Perfect cooling system: Japanese semiconductor + water + air + cooling gel, and the skin



temperature -3-10℃.



12. Non- invasive treatment, no side effect, no scar



13. Beauty and durable packing case: aluminum alloy box with this sponge and strong support.





Advantage



1. User friendly software means that operator error is drastically reduced.



2. Multifunctional applications with cheap price.



3. Alarm protection system of water flow and water temperature: stop all working immediately



in case of any risk, protecting people & machine against any risk at the first time.



4. 1 handpiece with different spot sizes, facilites operation and achieves instant big area treatment.



5. Big spot size: 13*30mm2, 13*40mm2 or 15*50mm2 for optional.



6. New developed luxury handpiece with streamline line design & import USA CPC water



connector and Germany Harting electronic connector, grace, strong and durable.







Before and After
