| Place of Origin: | Beijing China |
| Brand Name: | HONKON |
| Certification: | Medical CE |
| Model Number: | YILIYA-10600IL |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | Carton and Aluminum box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
| Laser Type: | RF-excited CO2 Laser | Spot Size: | 100um-2000um |
|---|---|---|---|
| Wavelength: | 10600nm Laser | Treatment Ways: | Fractional Laser |
| Function: | Acne Scars Removal ,Freckles Removal | Aiming Beam: | 635nm Laser |
| High Light: | scar removal machine,cosmetic laser equipment |
||

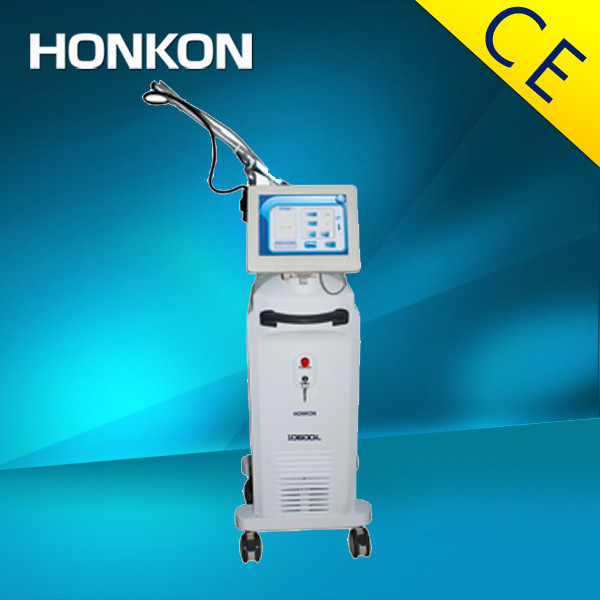

Medical RF excited Co2 Fractional Laser Machine For Freckles Removal
Treatment theory:
Fractional laser penetrates skin and forms tiny thermal channels. This creates some ablative and thermal effect only on these channels (a micro-injury) without damaging the surrounding tissue. The tissues surrounding the micro-injuries (about 15-20% of the treatment area) start the healing process. As the collagen remodels, the skin is tightened, scars and pigmented lesions are improved as well.
1. Large pores, Fine lines, Skin tightening and whitening, Skin loosen(Deep Wrinkles), Stretch marks.
2. Various Scars:Burn Scars, Acne Scars, Surgical Scars and Keloid.Pigmented skin lesions:Chloasma, Freckles, Age spots, Sun spots, CAMLS.
3. Reconstruction of photoaging skin.
1. Via multiple handles it can be adapted to Gynecology, ENT, Neurology and general surgery.
2. In Cosmetic Surgery, it can be adapted to incisions for Blepharoplasty, Skin Tags and Ingrown Nails, Compound Nevus and Intra Dermal Nevus etc.
1. RF-excited laser system ensures stable performance.
2. Windows CE system facilitates a remote upgrade.
3. Ultrapure, CW, fractional laser output modes extends treatment range.
4. Patent adjust with spot size 50 to 2000μm adjustable provides a full spectrum of ablation.
5. Max. 30W power output, Min. 50μm spot size enables 4mm penetration to release treatment painlessly and complications.
6. Max 3cm*3cm, Min. 0.25cm*0.25cm treatment area provides a fast and precise treatment.
| Laser Type | RF-excited CO2 laser | Wavelength | 10600nm |
| Beam Delivery | 7-joint arm | Maximum Output Power | 30W/20W/10W(optional) |
| Optical Beam Quality | TEM | Spot Size | 80um-2000um |
| Power of the Aiming Beam | ≤5mW | Aiming Beam | 635nm |
| Scanning Mode | Randomized Scanning | Laser Operating Mode | Ultra Pluse, CW, Fractional |
| Cooling | Air Cooling | Pulse Energy | 10mj-200mj(stepping:2mj) |
| Spot Pattern |
Triangle/Square/Rectangle/ |
Pulse Interval | 2ms-100ms(stepping:1ms) |
| Scan Area |
5*5mm, 2.5*2.5mm, 1.25*1.25mm |
Dimensions(before packaged) | 650mm*340mm*760mm |
| Spot Density | 36spots/cm², 144spots/cm², 576spots/cm² | Dimensions(After Packaged) | 760mm*455mm*975mm |
| Power Supply | AC220V 50HZ / AC110V 60HZ |
