| Place of Origin: | Beijing, China (Mainland) |
| Brand Name: | HONKON |
| Certification: | Medical CE |
| Model Number: | M10Ee |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Packaging Details: | Aluminum box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
| Name: | Multifunctional Beauty Machine | Theory: | Q-switch Laser, IPL, E-light, Cooling RF |
|---|---|---|---|
| Function1: | Freckle Removal | Function2: | Acne Removal |
| Function3: | Skin Rejuvenation | Screen: | 12.1”TFT Touch LCD |
| High Light: | multifunction beauty machine,multi function beauty equipment |
||

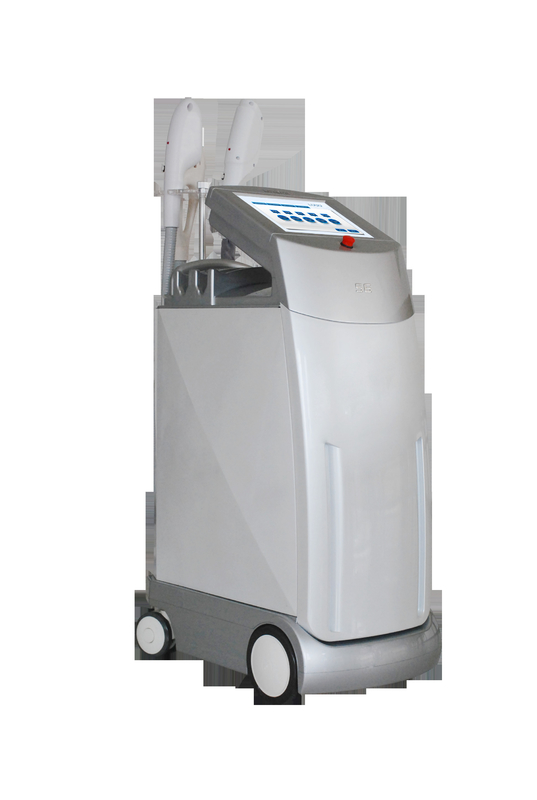

Multifunction Beauty Equipment with IPL + RF + Elight For Freckle Removal , Acne Removal
Multifunction Beauty IPL Equipment HONKON-S6C
Treatment Theory:
All application range of Q-switch Laser, IPL, E-light, Cooling RF and E- energy Breast Beautifying series, please refer to the relative chapters. Nowadays, time is gold;the one who can apply customers with the most comprehensive and efficient, the most time-saving services will be the winner in the competition. HONKON multifunctional series was born on such a background.
APPLICATION :
1. Wrinkle reduction
2.skin rejuvenation
3. Vascular lesions
4. Freckle removal
5. Acne removal
6. hair removal
HONKON-M10e ADVANTAGES:
1. 12.1”TFT touch LCD shows a new visible space.
2. Multi-technologies combined in one machine, satisfying the various needs of clients while saving the cost.
3. Upgrading space meets the need of function expanding.
4. Injection mould ensures the housing exquisite, durable and standardized.
5. Inside structure adopts modularized design, easy to transfer among different functions and maintenance.
6. Various types of treatment handpieces are available.
APPLICATION:
|
Model |
IPL/E-light (Spot Size 10*10mm) |
IPL/E-light (Spot Size 8*40mm) |
IPL/E-light (Spot Size 15*60mm) |
RF Mono-polar & Bi-polar |
Breast Enhancement |
|
M10e |
Optional |
√ |
√ |
× |
Optional |
|
M10Ee |
Optional |
√ |
Optional |
√ |
Optional |
|
M90e |
Optional |
√ |
Optional |
√ |
Optional |
|
GD |
Optional |
√ |
Optional |
√ |
Optional |
|
M309Ee |
Optional |
√ |
Optional |
√ |
× |
HONKON-M10e / M10Ee / GF SPECIFICATION
|
E-light |
|||
|
Treatment Handle |
F+E & F+E+ &I+E(optional) |
F+E+ Wavelength |
HR 610-1200nm |
|
Wavelength Filter |
HR 610-1200nm VL 585-1200nm SR 530-1200nm PR 560-1200nm(optional) AR430-1200nm(optional)
|
Pulse Number |
1-20 |
|
1st-Delay/ Sub-Delay |
1-20ms |
1stPulse/Sub-Pulse |
0.1-10ms |
|
Shot Interval |
3-5s |
|
|
|
Q-switched ND:YAG Laser
|
|||
|
Treatment Handle |
D+(singlepulse400mj) |
Spot Size |
1-6mmcontinuously |
|
Wavelength |
1064nm&532nm |
Energy |
≤400mj(single pulse) ≤900mj(double-pulse) ≤1200mj(triangle-pulse)
|
|
Pulse Duration |
6-8ns |
Input Power |
500W |
|
Repition Rate |
1-5Hz |
|
|
|
RF |
|||
|
Treatment Handle |
RD-II(Tripolar Five-polar No Cooling) RW-V(Cooling mono-polar&Bi-polar RF) RW-VI(Cooling mono-polar&Bi-polar RF)
|
RF Working Mode |
Continuous /Pulse |
|
Cathode Pads |
200x138mm2(Stainless Steel) |
RF Power |
120w(Max) |
|
RW-V Heads |
Mono-polar:10mm, 25mm, 45mm, |
RF Time |
0.1-20S |
|
|
|
RF Delay |
0.1-20S |
|
|
|
RF Frequency |
2.6MHz
|
|
Breast Enhancement
|
|||
|
Treatment Handle |
D+E
|
1st-Pulse/ Sub-Pulse
|
0.1-10ms
|
|
D+E Spot Size |
Round, Diameter 25mm |
1st-Delay/ Sub-Delay |
0.1-10ms |
|
D+E Wavelength |
Special Wavelength |
Shot Interval |
3-5s |
|
Pulse Number |
1-20 |
RF Working Mode |
Interval Pulse |
|
RF Frequency
|
2.6MkHz
|
RF Power |
120W(Max) |
|
RF Time |
1-10s |
IPL Energy |
1-50J/cm² |
|
Cooling |
-2℃~0℃ |
Dimension (Before Packaged) |
640mm×400mm×1040mm |
|
Dimension (After Packaged) |
695mm×635mm×1435mm |
Power Supply |
AC 220V 50Hz/ AC 110V 60Hz |
|
Net Weight |
52KGS |
Gross Weight |
64KGS |
|
Cooling System |
Air,Water,Semi-conductor |
|
|
