| Place of Origin: | China |
| Brand Name: | DYM |
| Model Number: | DYM-310 |
| Category: | Q-Switched Nd:Yag Laser Machine |
|---|
| Minimum Order Quantity: | 1 set |
|---|---|
| Delivery Time: | within 3 days after receiving money |
fractional laser

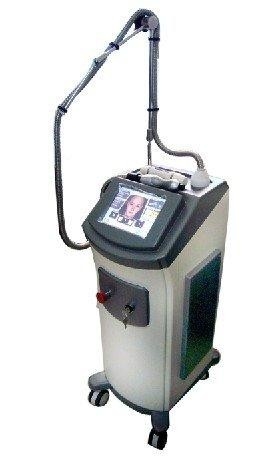

Fractional 1550nm Erbium Glass Laser
Beam is strongly absorbed by water,the beam pass through the out layer skin, and wounds the underlaying collagen,it undermaged cell immediately move into the microcopically damaged area and heal the wounded area.Micro lens array is better focusing into skin.1550nm Erbium: Glass laser is adopted for the same purpose of the narrow and deep MTZs'.It results in maximum efficacy of the treatment, The Erbium:Glass laser tends to be rather focus into the deep hole without being dissipated by the skin surface,For the long term effect with less down time.Erbium: Glass is the best of chice of the laser source of the fractional systems.
| System Specification | ||
| Laser Type: | 1550nm Er:Glass Laser | |
| Operation Mode : | Static | |
| Energy: | 1-12J | |
| Frequency: | 1Hz, 2Hz | |
| Density: | 300 Spots/cm2 | |
| Handpiece Tip: | 10mm(100 microbeams per cm2) | |
| and 15mm(322 microbeams per cm2) | ||
| Actuator: | Footpedal | |
| Display: | 12.1/15 inch touch screen | |
| Power input: | AC 220V | |
| Current input: | 10A | |
| Weight: | about 100Kg | |
| Dimension: | 600mm(W)X720mm(D)X980mm(H) | |
| Option: | Resurfacing Handpiece | |
application:
WRINKLE REDUCTION
PHOTODAMAGE
SCAR AND ACNE SCAR TREATMENT
SKIN TIGHTENING
PORE SIZE SHRINK
PIGMENTATION REMOVAL
