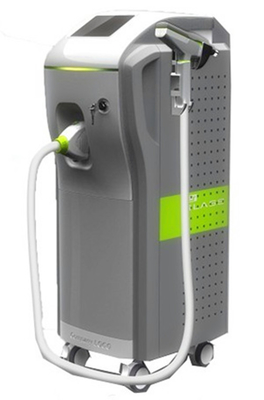

1540nm pixel fractional er:glass laser skin rejvuenation

It is the third generation of 1540nm ER:glass laser skin reuvenation .
Theory:
The 1540nm Erbium Glass Laser system fires a 1540nm erbium glass fiber laser beam which is then split into numbers of microscopic beams, producing tiny DOT, or fractional treatment zones within the selected target area of the skin, leaving the other zones perfectly intact. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to be healed much faster than the whole treatment area. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation; Eventually the skin will look much healthier and younger.
Advantages of 1540nm fractional
1, Better Focusing Than the Scanner System
Compared with scanner system of the fractional systems, the MLA system enables the narrow and deep MTZs'(micro thermal zone)-250 micro*1mm. The narrow and MTZs' result in the real skin resurfacing where as other fractional ones generate just shallow MTZs' and reduces the effect of the treatment. Due to the MLA way, Er; Glass laser can precisely deliver the energy. In the fractional market, most of hi-brand fractional products adopt the MLA approach by the above reasons. The curvature of the lens is almost like the ball shape and it is particularly hi-tech. The MLA way gives less pain, less swelling, and less redness.
2, 1540nm fractional Erbium: Glass penetrates deeper than CO2 fractional
The CO2 Laser just scratches the skin surface instead of going deep into the skin because its water absorption rate is very high. The Erbium: Glass laser tends to be rather focused into the deep hole without being dissipated by the skin surface, For the long term effects with less down time, Erbium: Glass is the best of choice of the laser source of the factional systems.
Techinical parameter and specification:
Model: E003
Light Source 1540 nm Erbium Glass Laser
Wave Length 1540 nm
MTZ Energy 100: 30. 40. 50. 60. 70mJ/ MTZ,
324: 5. 8. 10. 15. 25ml/ MTZ
MTZs Density 100 MTZs/ cm2, 300 MTZs/ cm2
Pulse Width 10ms, 15ms selectable
Pulse Repetition rate 1Hz or Single
Operate Interface 8" True color touch screen TFT LCD
Cooling System Air &Water circulation cooling system
Power Supply 230-260V, 50-60Hz
Service USB outlet for system Soft-ware upgrade
System Size 50cm*40cm*105cm(L*W*H)
Net Weight: 45KGS
Application Range:
Works on all skin types and colors
Acne-removal or facical scars removal
To remove sun damage, including freckles and brown spots
To eliminate wrinkles and lines from neck, face and hands.
To smoothe rough skin and to improve skin texture.
