CO2 Fractional Laser Machine / Equipment, Remove pigment

CO2 Fractional Laser Machine / Equipment, Remove pigment

  • CO2 Fractional Laser Machine / Equipment,  Remove pigment
CO2 Fractional Laser Machine / Equipment,  Remove pigment
Product Details:
Place of Origin: Beijing, China (Mainland)
Brand Name: Top
Certification: CE
Model Number: FC-01
OEM/ODM: Acceptable
Shipping Methods: By DHL/TNT/AIR/Sea etc
Contact Now
Detailed Product Description
High Light:

co2 fractional laser treatment


co2 laser equipment

CO2 Fractional Laser Machine / Equipment,  Remove pigment



1,Fractional CO2 Laser machine

2,Large LCD color touch screen

3,Continuous, super pulse

4,Safety Protection with automatic alarm

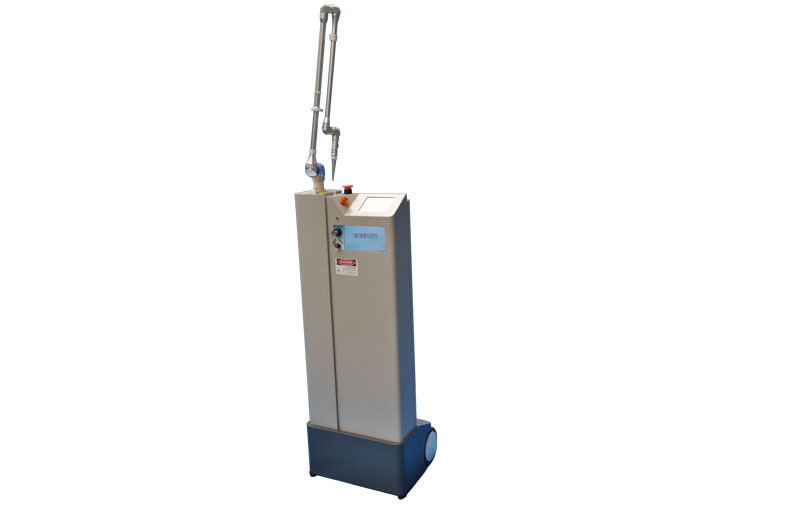

Fractional CO2 Laser machine-FC-01



1. Skin renewal and regeneration
2. All colors tattoo removal
3. Remove all kinds of wrinkles
4. Remove acne and scars
5. Remove neoplasms
6. Remove pigment
7. Treat telangiectasis
8. Sun damage recovery and skin renewing
9. Actenic keratoses
10. Face lift, tighten and whiten skin
11. Pierce ears
12. Effective treatment with skin hydroponic, skin rough


1. Large LCD color touch screen, most humanist software control
2. 7-jointed arm light conduct, more convenient operating, less costs
3. 12 types Output patterns The requirements of different patientscan be satisfied.
4. Continuous, super pulse, fractional different Operation Modes, There is a wider use in clinical application.
5. Focal spot diameter and interval are adjustable. Patient's unique needs can be met during treatment.
6. The best USA RF laser tube, Stable performance, high effective, No consumable costs.
7. Easy to disassemble the handpiece and hang in the machine.
8. Various spot volumes are suitable for different area of the body which maximally avoid the side-effect that result from the overlap of the spot, reduce the pain during treatment, satisfy different therapists unique request.
9. Safety Protection with automatic alarm.
10. Easy and fast treatment, no down time.
11. No pigmentation and depigmentation of ski, not need extra consumable.


How it works:

Fractional CO2 Laser System fires a laser beam which is split into numbers of microscopic beams, producing tiny DOT or fractional treatment zones within the selected target area only. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation, eventually the skin will look much healthier and younger.



Fractional Co2 Laser

Basic information

LCD screen

8.4  inch LCD real color touch screen

Light conducting system

7 jointed arms to conduct light


10.6µ m

Pulsed Radiofrequency




Matric Mode




Laser energy



Step value



Figure option







Scan pattern size

        0.1x0.1mm 2 — 20x20mm 2

Scan mode

Continuous, super pulse, fractional

Dot quantity

400 dots at most

Pulse duration


Spot distance


Pulse energy

1mj to 100mj is optional for each dot.


Cooling system

Water and wind cooling system

Laser apparatus

Sealed off laser device stimulated by direct current

Condenser focus


Beam divergence angle

0.3 Mrad

Spot size

≥ 0.2mm at the focus

Radiation time / Interval time

0.01-1 s

Aiming beam

635nm infrared ray

Power Supply

220V/110V± 10%, 50HZ/60HZ
