CO2 fractional laser machine for wrinkle removal & scars removal

CO2 fractional laser machine for wrinkle removal & scars removal

  • CO2 fractional laser machine for wrinkle removal & scars removal
CO2 fractional laser machine for wrinkle removal & scars removal
Product Details:
Place of Origin: China
Brand Name: YILIZI
Certification: CE,FDA
Model Number: YLZ-H10600IL
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $0-1/set
Packaging Details: standard export Wooden box, Al box
Delivery Time: Within 4-7 working days after receipt of the payment
Payment Terms: L/C,T/T,Western Union,MoneyGram,paypal, escrow;
Supply Ability: 300 Set per Month; 3 years warranty, CE certificate, OEM & ODM service
Contact Now
Detailed Product Description

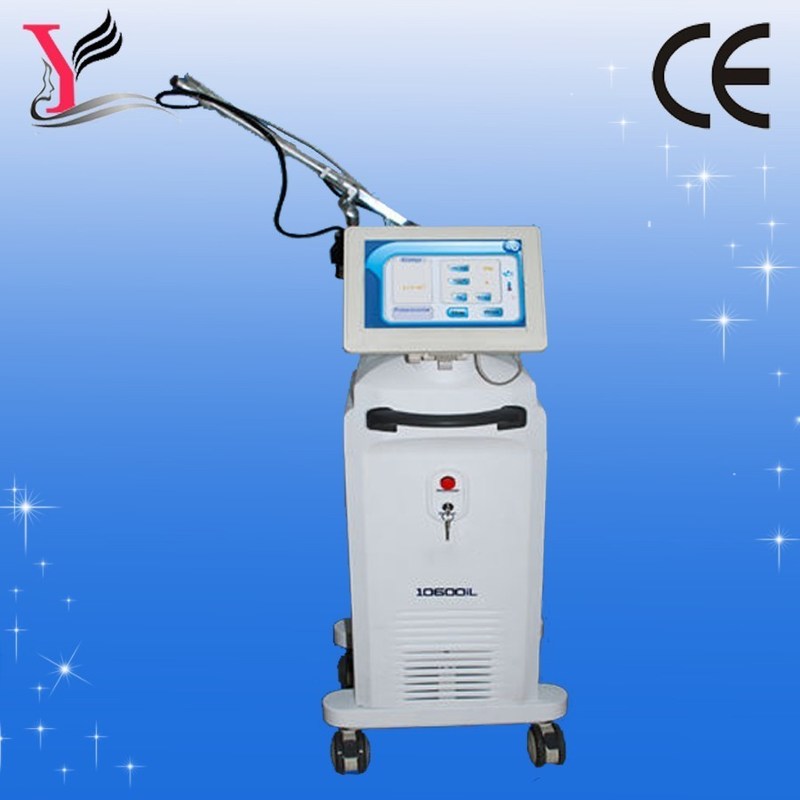

CO2 fractional laser machine for wrinkle removal & scars removal (YLZ-H10600IL )

CO2 fractional laser machine for wrinkle removal & scars removal 0CO2 fractional laser machine for wrinkle removal & scars removal 1



CO2 fractional laser machine for wrinkle removal & scars removal 2



Treatment Theory

Fractional laser penetrates skin and forms tiny thermal channels. This creates some ablative and thermal effect only on these channels (a micro-injury) without damaging the surrounding tissue. The tissues surrounding the micro-injuries (about 15-20% of the treatment area) start the healing process. As the collagen remodels, the skin is tightened, scars and pigmented lesions are improved as well.

Parameters:





Laser Type

CO2 laser

Wavelength

10600nm

Beam Delivery

7-joint arm.

Maximum Output Power

35W/25W/15W

Optical Beam Quality

TEM00

Spot Size

0.12mm - 1.25mm (Adjustable)

Spot Pattern

Circle / Triangle/ Square/ Rectangle / Rhombus /Line

Scan Area Spot Volume

(Square)

16 spots4×436 spots6×664 spots8×8

100 spots10×10144 spots12×12

Spot Density

×1 / ×2 / ×3 / ×4 / ×5 / ×6

Aiming Beam

635 nm

Power of the Aiming Beam

≤5mW

Laser Operating Mode

UltraPluse

Scanning Mode

Randomized Scanning

Pulse Energy

10mj~200mj (every stepping: 2mj)

Pulse Interval

1ms~100ms (every stepping: 1mj)

Working Mode

Continuous operation with intermittent loading

Cooling

Air Cooling

Power Supply

AC 220V 50Hz/ AC 110V 60Hz

Machine size

650mm*340mm*760mm

Packing size

760mm*455mm*975mm

Net Weight

45KGS

Gross Weight

88KGS



CO2 fractional laser machine for wrinkle removal & scars removal 3

Function:

1. Application Range of Fractional Mode:

a. large pores, fine lines, skin tightening and whitening, skin loosen, deep wrinkles, stretch marks;
b. various scars: burnt scars, acne scars, surgical scars and Keloid;
c. pigmented skin lesions: Chloasma, freckles, age spots, sun spots, CAMLS;
d. reconstruction of photo-aging skin.
2. Application Range of CW and Ultra-pulse modes:
In cosmetic surgery, it can be adopted to incisions for Blepharoplasty, skin tags and ingrown nails, compound Nevus and intra dermal Nevus etc.



Advantage of YLZ-H10600IL:

1) European and American product quality , unimaginable price , to bring you unique market competitiveness ;
2) The world's most convenient exfoliative skin reconstruction fractional laser ultrapulse ;
3) 12.1-inch TFT LCD touch screen , clear operation ;
4) Simple and elegant appearance , is the preferred equipment of large beauty salons and beauty clinics
5) Is the world 's longest life ultrapulse glass fractional laser beauty equipment ;
6) Superior thermal design , the instrument can work around the clock .





CO2 fractional laser machine for wrinkle removal & scars removal 4

CO2 fractional laser machine for wrinkle removal & scars removal 5
