Place of Origin: | China |
Brand Name: | BL |
Certification: | Medical CE |
Model Number: | T-RC |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Aluminum plane case |
Delivery Time: | 5-6 working days after the receipt |
Payment Terms: | T/T,Western Union |
Supply Ability: | 500 sets per month |
Highlight: | co2 fractional laser resurfacing |
---|

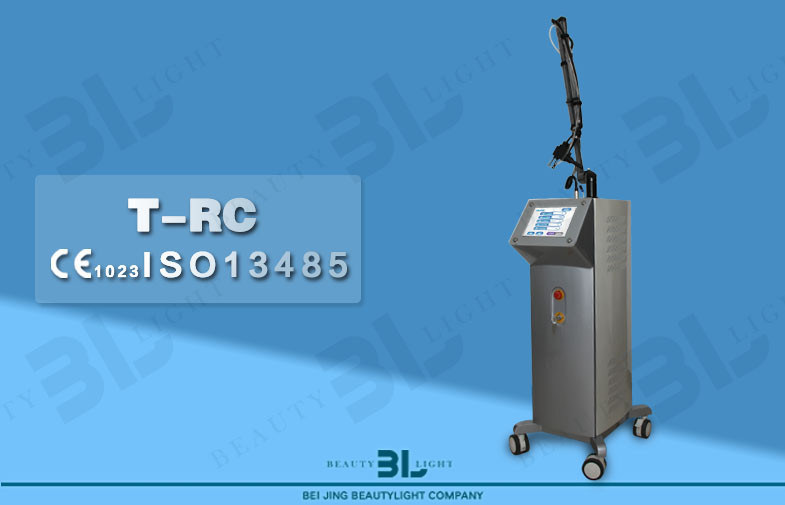

RF excited CO2 fractional laser machine T-RC for acne scar removal skin rejuvenation charring
Specification
Laser type |
RF-CO2 laser |
Beam transport system |
7 articular arm |
Wavelength |
10.6μm |
Ultrapulse power |
Average power 30W Max power 120W |
Laser working mode |
Ultrapulse |
Output mode |
Dot , Ultrapuse, fractional |
Dot quantity |
400 dots at most |
Working state under fractional mode |
Ultrapulse |
Beam divergence angle |
0.3 mrad |
Spot mode |
Single |
Spot size |
0.18 |
Diameter of the focus spot |
0.08 & 0.12mm |
Spot distance |
0.1-2mm , adjustable |
Pulse width |
0.1ms-10.0ms , adjustable |
Pulse interval |
1ms-100ms , 1ms |
Scan pattern |
Triangle/square/rectangle/diamond/round/oval/line |
Aiming beam |
638 nm |
Aiming beam power |
≤5mw |
Scan mode |
Free scan/sequence scan/two way scan |
Power supply |
AC 220V±10%, 50Hz |
Cooling system |
Air cooling |
Output power |
600W |
Machine size |
33*75*30cm |
Net weight |
45KG |
Theory
Heat Optothermal treatment
1. Stimulate the collagen hyperplasia
2. Accelerated decomposition of pigmentation
3. Accelerated blood circulation, increase metabolism
Micro-invasive treatment
1. Stimulate cellular repair mechanismsTechnology of Ultrapulse
Mainly let the original average output of the laser energy concentrated in a very short period of time then output, due to the high pulse power, short time, and more round spot, the pressure on the surface from laser heat transfer effects is low (small heat-affected zone)
Advantages of Ultra Pulse
Ultrapulse Laser Mode Ordinary Laser Mode of Glass Tube
Applications
