nd yag q switch

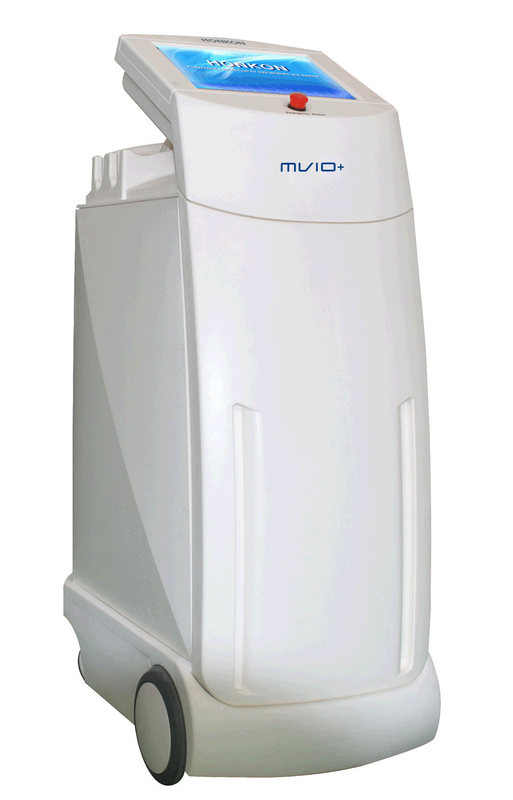

1064nm , 532nm Q Switched Nd YAG Laser Tattoo Removal Machine Single Pulse 400mj

YILIYA-MV10+

D+ Handpiece

Spot Adjustor

Carbon Tip

1064nm&532nm Tips

ADVANTAGES

Patented technology of single lamp and dual rods doubles energy output (400mj).

Shorter pulse width (6-8ns) than ordinary Q-switched Nd:YAG laser machines.

With carbon skin rejuvenation function.

High cost-performance

Better results for dermal pigmentations.

1-10Hz frequency speeds up treatment.

SPECIFICATION

Laser Type: Q-switched Nd:YAG Laser

Wavelength: 1064nm&532nm

Laser Mode: Q-switched

Pulse Width: 6-8ns

Frequency: 1-10Hz

Spot Diameter: 1-6mm continuously adjustable

Spot Adjustor: 1, 1.5, 2, 2.5, 3, 3.5, 4mm (optional)

Cooling: Air& Water

Input Power: 780W

Screen: TFT touch screen(MV10+)

Pulse Energy: ≤400mj@1064nm (single pulse);

             ≤200mj@532nm (single pulse);

             ≤800mj@1064nm (double pulse);

             ≤400mj@532nm (double pulse);

             ≤1200mj@1064nm (triple pulse);

             ≤600mj@532nm (triple pulse)

Power Supply: AC220V+10%, 50Hz;

             AC110V+10%, 60Hz

Insurance Standard: Max 5A

Net Weight: 52kg

Dimensions (before packaged): 82×55×142cm3

Dimensions (after Packaged): 64×40×104cm3
