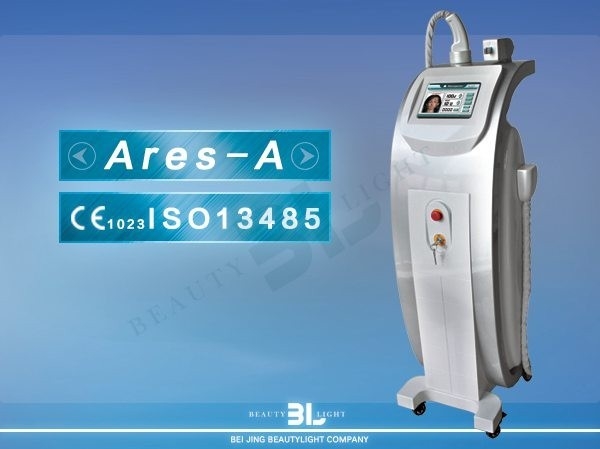

Monopolar Wrinkle Removal RF Beauty Equipment for Body Contouring

Product Details:

Place of Origin:	China
Brand Name:	BL
Certification:	CE
Model Number:	ARES-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Aluminum plane case
Delivery Time:	5-6 working days after the receipt
Payment Terms:	T/T,Western Union
Supply Ability:	500 sets one month

Contact Now

Detailed Product Description

Name:	RF Beauty Equipment	Frequency:	6MHZ
Feature:	No Pain	Application:	Wrinkles Removal
Output Mode:	Mono-Polar Frequency	Cooling Way:	Semiconductor Cooling
High Light:	Monopolar RF equipment , Body contouring machine

Monopolar Wrinkle Removal RF Beauty Equipment for Body Contouring

Basic Theory

Ares radio frequency Tightening System, uses its unique 6MHZ variable frequency system to rapidly alternate the electric field in the skin from positive to negative in order to set the optimum applicable frequency. RF produces heat when the tissue’s electrical resistance converts the electric current to thermal energy deeper within the dermis. Initial collagen denaturation within these thermally modified deep tissues causes the immediate tissue contraction. Subsequent neocollagenesis then further tightens the dermal tissue and reduces wrinkles. It w ill largely help t o achieve the best treatment result and make the skin tightening, smooth, and fresh

Advantages

Heating Schematics of Monopolar Radiofrequency

Heating Schematics of Monopolar Radio frequency Heating Schematics of Bipolar Radiofrequency

Favorable Monopolar Radiofrequency and good penetration to 5～15mm. Full range of treatment and great result.
Two Treatment Handpiece Design with specific treatment target of different size, aiming to face tightening by small handpiece and body contouring by big handpiece
Patented frequency-variable control basing on skin temperature and treatment is designed for accurate treatment
Panted inside GPC Temperature Control System automatically and simultaneously changeable with treatment parameters, like skin temperature, contact degree of the handpiece, and so on, to ensure the most safe and effective treatment
Continual contact cooling in the range of －25℃～25 to make the treatment more comfortable and effective without epidermal damage
Large LCD touch screen and friendly user interface
Patented electrical conducting AB Film attached to the system for value added service and simple operation.

Monopolar Wrinkle Removal RF Beauty Equipment for Body Contouring 0

Applications

Wrinkle removal
Body contouring
Face tightening

Parameter

Composite Frequency	6MHZ
Output Mode	Mono-Polar Frequency
Frequency Energy	0～300J(±1%) adjustable Double treatment heads
Size of Treatment Head	Face: 10×20mm Body: ø80 mm
Pulse Repetition Rate	Minimum: 0.3s
Cooling Way	Semiconductor Cooling
Cooling Control	－5℃～25℃ adjustable by touching
Display	Finger-touched LCD
Electrical Requirements	110V/220V＋10% 60HZ 10A
Size	30×50×120cm
Weight	50KG
