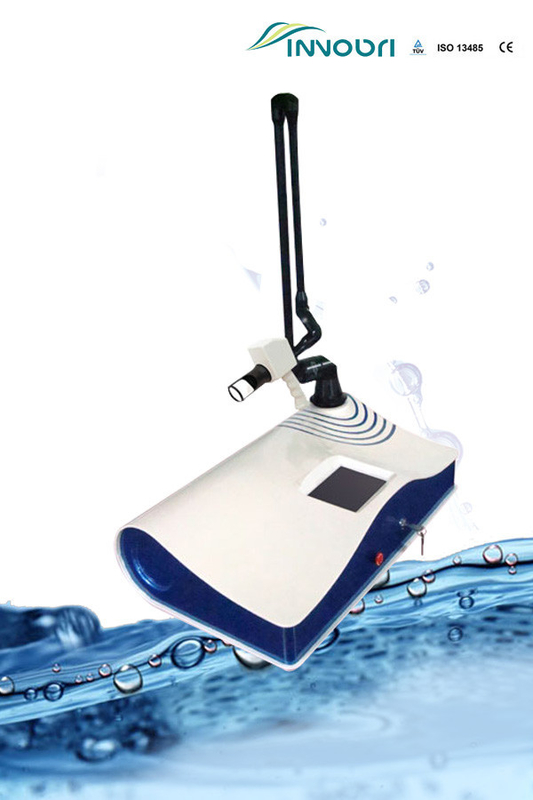

MTZs 635nm Red Diode Co2 Fractional Laser Machine for Skin Wrinkle Removal

MTZs 635nm Red Diode Co2 Fractional Laser Machine for Skin Wrinkle Removal

  • MTZs 635nm Red Diode Co2 Fractional Laser Machine for Skin Wrinkle Removal
MTZs 635nm Red Diode Co2 Fractional Laser Machine for Skin Wrinkle Removal
Product Details:
Place of Origin: Beijing China
Brand Name: Innobri
Certification: CE,ISO9001,UKAS,TUV,ISO13485,SGS,PRC Import & Export License
Model Number: IB600
Contact Now
Detailed Product Description
High Light:

fractional co2 laser

,

laser wrinkle removal

,

laser acne removal

MTZs 635nm Red Diode Co2 Fractional Laser Machine for Skin Wrinkle Removal



Fractional laser treatment works by targeting both the epidermis and dermis. It does this by delivering a laser beam that is divided into thousands of tiny but deep columns of treatment into the skin. These are called microthermal treatment zones (MTZs). Within each MTZ old epidermal pigmented cells are expelled and penetration of collagen in the dermis causes a reaction that leads to collagen remodelling and new collagen formation. By using MTZs, the laser targets and treats intensively within the zone whilst surrounding healthy tissue remain intact and unaffected. This fractional treatment results in a faster healing process than if all tissue in the treatment area was exposed to the laser.


FEATURES


Independently developed TEMoo mode laser tube
Discrete scanning technology
Smart variable treatment graphics


Magic, single, repeat pulse and CW operation modes
Power-on self-test, automatic failure alarm and diagonosis



Applications:

1.Skin renewing and resurfacing
2.Wrinkle Removal, skin tightening
3.Acne and acne scar removal
4.Smooth burnt scars and surgery scars, etc
5.Remove intractable chloasmas and pigmentation
6.Sun damage recovery.System features:





Specifications:

Wavelength

10.6microns





Beam mode

TEM00

Power to tissue

15W

Magic pulse peak power

100W

Laser operation Modes

Fractional, Magic, Single, Repeat Pulse & CW

Aiming beam

3mW @ 635nm red diode laser

Beam delivery system

7-joint spring-balanced articulated arm

Working radius

130cm

Cooling system

Water Closed-cycle

Control System

LCD touch screen, footswitch

Warranty

1 year

Working voltage

230VAC/50Hz or 120VAC/60Hz



Scanner Technical Specification

Dot quantity

1~10000 dots at most

Working mode

Fractional (Magic Pulse Technology)

Condenser focus

F=70mm

Spot size

Min: 0.15mm at the focus

Interval between 2 centers

0/2~2mm

Scanner graphics

Square, rectangle, circle and up to 9 kinds

Duty time

100us~10ms (adjustable)

Idle time

0.01~1s

Treatment size

20x20mm2 (adjustable)

Net weight

0.5Kg

Package dimensions

82x63x36cm3







Competitive Advantage:



WHY CHOOSE US?

1.Articulated arm with 7 segments and balance weight

2.Square, rectangle, round, linearity, hexagon, triangle, ellipse 7 graphic

3.Both have glass tube and RF metal tube,customers have more choice.

4..Our machine's surface is made of insulating materials which is more environment-friendly.

5.8.4inch color touch screen operating, simple and convenience which make the machine humanization and looks elegant

6.We use high quality power which imported from USA can make the machine work stable

7.We use high quality  Direct-current switch which produced in TAIWAN
