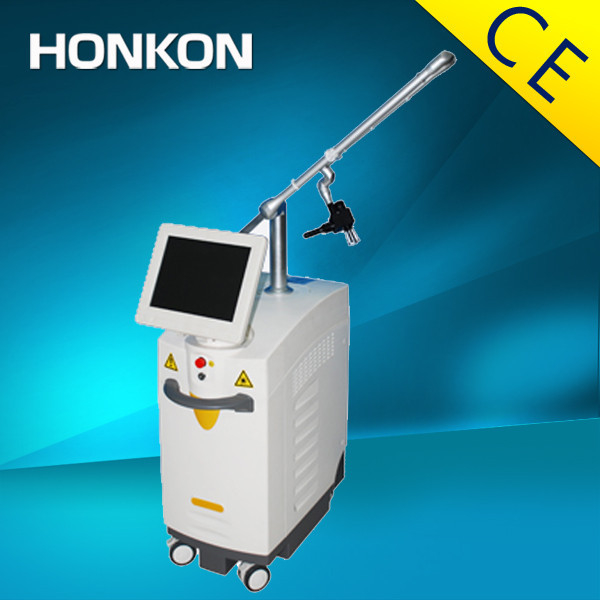

Ultra Pulse Co2 Fractional Laser Skin Tightening Machine 100um - 2000um Spot Size

Ultra Pulse Co2 Fractional Laser Skin Tightening Machine 100um - 2000um Spot Size

  • Ultra Pulse Co2 Fractional Laser Skin Tightening Machine 100um - 2000um Spot Size
  • Ultra Pulse Co2 Fractional Laser Skin Tightening Machine 100um - 2000um Spot Size
Ultra Pulse Co2 Fractional Laser Skin Tightening Machine 100um - 2000um Spot Size
Product Details:
Place of Origin: Beijing China
Brand Name: HONKON
Certification: Medical CE
Model Number: YILIYA-10600AL
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Carton and Aluminum box
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Spot Size: 100um-2000um Wavelength: 10600nm Laser
Treatment Ways: Fractional Laser Function: Skin Tightening And Whitening Beauty Machine
Laser Type: RF-excited CO2 Laser Maximum Output Power: 30W/20W/10W(optional)
High Light:

scar removal machine

,

cosmetic laser equipment

Ultra Pulse Co2 Fractional Laser Skin Tightening Machine 100um - 2000um Spot Size



 Treatment theory:

Fractional laser light penetrates the skin with tiny thermal channels through the random scanning. This creates an ablative and thermal effect on only these channels (a micro-injury) without damaging the surrounding tissue. The tissue surrounding the micro-injury sites (about 15-20% of the treatment area) starts the process of healing. As collagen remodels, skin tightened, scars improved and pigmented lesions removed.




Application

l Application Range of Fractional treatment handpiece:

1. Large pores, Fine lines, Skin tightening and whitening, Skin loosen(Deep Wrinkles), Stretch marks.
2. Various Scars:Burn Scars, Acne Scars, Surgical Scars and Keloid.Pigmented skin lesions:Chloasma, Freckles, Age spots, Sun spots, CAMLS.
3. Reconstruction of photoaging skin.



ll Application Range of Incision handpiece:

1. Via multiple handles it can be adapted to Gynecology, ENT, Neurology and general surgery.
2. In Cosmetic Surgery, it can be adapted to incisions for Blepharoplasty, Skin Tags and Ingrown Nails, Compound Nevus and Intra Dermal Nevus etc.



YILIYA-10600AL Advantages:

1. RF-excited laser system ensures stable performance.
2. Windows CE system facilitates a remote upgrade.
3. Ultrapure, CW, fractional laser output modes extends treatment range.
4. Patent adjust with spot size 80 to 2000μm adjustable provides a full spectrum of ablation.
5. Max. 30W power output, Min. 50μm spot size enables 4mm penetration to release treatment painlessly and complications.
6. Max 3cm*3cm, Min. 0.25cm*0.25cm treatment area provides a fast and precise treatment.



YILIYA-10600AL Specification

Laser Type RF-excited CO2 laser Wavelength 10600nm
Beam Delivery 7-joint arm Maximum Output Power 30W/20W/10W(optional)
Optical Beam Quality TEM Spot Size 80um-2000um
Power of the Aiming Beam ≤5mW Aiming Beam 635nm
Scanning Mode Randomized Scanning Laser Operating Mode Ultra Pluse, CW, Fractional
Cooling Air Cooling Pulse Energy 10mj-200mj(stepping:2mj)
Spot Pattern

Triangle/Square/Rectangle/
Rhombus/Round

Pulse Interval 2ms-100ms(stepping:1ms)
Scan Area

5*5mm, 2.5*2.5mm, 1.25*1.25mm
30*30mm, 20*20mm, 10*10mm

Dimensions(before  packaged) 650mm*340mm*760mm
Spot Density 36spots/cm², 144spots/cm², 576spots/cm² Dimensions(After Packaged) 760mm*455mm*975mm
Power Supply AC220V  50HZ / AC110V 60HZ
