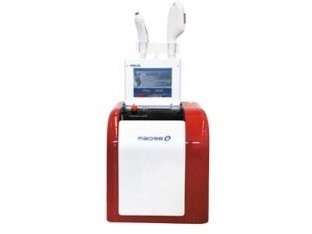

Portable Q-switch Laser E-light IPl RF Multifunction Beauty Equipment Machine
ADVANTAGES:
1.8.4”TFT touch LCD.
2.One RF treatment handpiece(CoolingRW-VI with both Mono-polar and Bi-polar functions) and one E-light treatment handpiece (F+e).
3.F+e handpiece(8*40mm2) with 3 changeable filters are available;RF handpiece with 5 tips for different parts of the body.
4.Pulse lamp from USA ensures a high output energy and long lifetime. IC card function (optional) for rental service.
5.Foldable TFT touch LCD is luxury and generous, which is also convenient for operation.
6.Portable, Multifunctional, Cost-effective.
SPECIFICATION E-light
E-light | |||
Treatment Handle | F+Etype | Pulse number | 1-20 |
Wavelength | HR610-1200nmVR585-1200nmSR530-1200nm | 1st-Pulse/ Sub-Pulse | 0.1-10ms |
RF Frequency | 2.6MHz | 1st-Delay/ Sub-Delay | 1-20ms |
Discharge Interval | 3-5s | RF Time | 1-10s |
IPL Energy | 1-50J/cm | Cooling | -2℃~0℃ |
RF Power | 120W(Max) |
|
|
RF
| |||
TreatmentHandpieces | RW-VI (Cooling Mono-polar & Bi-polar RF) | RFPower | 120W(Max) |
RW-VIheads | Mono-polar:10mm, 25mm, 40mm Bi-polar: 25mm, 35mm | RFTime | 0.1-20S |
RFDelay | 0.1-20S | Cathode Pads | 200x138mm2(Stainless Steel) RF |
Power Supply | AC 220V 50Hz/ AC 110V 60Hz | WorkingMode | Continuous Pulse |
Net Weight | 32KGS | Gross Weight | 42KGS |
Cooling System | Air, Water, Semi-conductor | Dimension (Before packaged) | 410mm×460mm×410mm |
Dimension(After packaged) | 670mm×570mm×410mm |
| |
TREATMENT THEORY:
Allapplication range of Q-switch Laser, IPL, E-light, CoolingRFandE- energy Breast Beautifying series, please refer to the relative chapters. Nowadays, time is gold; the one who can apply customers with the most comprehensive and efficient, the most time-saving services will be the winner in the competition.HONKON multifunctional series was born on such a back ground.
APPLICATION:
Model | IPL/E-light (Spot Size 10*10mm) | IPL/E-light (Spot Size 8*40mm) | IPL/E-light (Spot Size 15*60mm) | RF Mono-polar & Bi-polar | Breast Enhancement |
M10e | Optional | √ | √ | × | Optional |
M10Ee | Optional | √ | Optional | √ | Optional |
M90e | Optional | √ | Optional | √ | Optional |
GD | Optional | √ | Optional | √ | Optional |
M309Ee | Optional | √ | Optional | √ | × |
