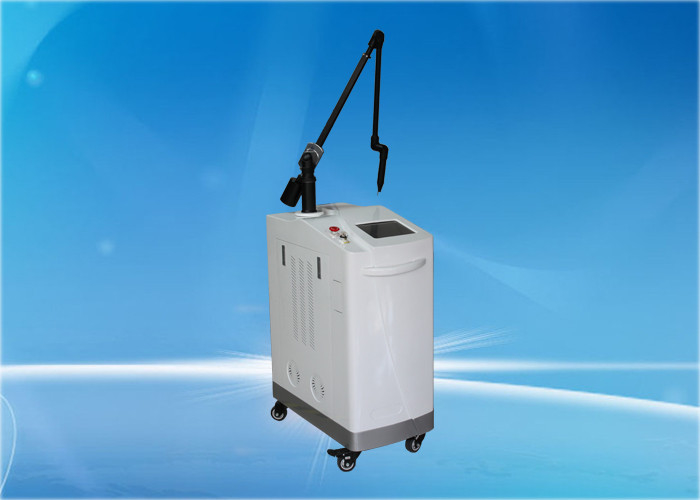

Intervals Pulsed Q Switched Nd Yag Laser Equipment For Clinic Working

Product Details:

Place of Origin:	BEIJING
Brand Name:	NUBWAY
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD
Packaging Details:	Alumina Box/wooden case
Delivery Time:	Within 5 working days
Payment Terms:	TT，Western Union,PayPal
Supply Ability:	300 SETS PER MONTH

Contact Now

Detailed Product Description

High Light:

q switch nd yag laser

q switched nd yag laser treatment

Intervals Pulsed Q Switched Nd Yag Laser Equipment For Clinic Working

Specifications and performance Guideline

Environmental conditions

1.Temperature: 10℃~30℃

2.Relative humidity: ≤75%,Air pressure: 860-1060hpa,Power requirement: AC 220v±10％;50Hz±2%, Water: Distilled water

Specification:

Dimensions	920× 555 ×1065mm not including joints arm
Weight	100kg
Wastage power	800VA
Fuse	220V, 10A
Output mode	Q-switch Pulsed output
Wavelength	1064nm, 532nm
Pulse Duration	10±3ns
Frequency	1Hz, 2Hz,5Hz
Single Pulse energy	250mJ-1500mj
Safety distance	NOHD 1km. Operator must wear goggles
Cooling system	Water cooled
Work mode	Continually work with intervals
Spot Size	Continually adjustable

Features of q switched nd yag laser:

1-a.Excellent 7 articular-arm, to ensure the accuracy of long treatment and easy the operator’s hand greatly

2-b.powerful energy of single pulse 800mJ

3-c.Efficiency: suitable to all types color of tattoo, high efficient treatment results

4-d.Alarm protection system of water flow and water temperature: protect people and machine against any risk at the first time

5-e.High quality of machine shell: ABS material

6-f.Perfect cooling system: closed-off water circulation + air, good performance for long time working
Optical and electrical performance

Energy of single pulse	250mj-1500mj
Unstable output range	ST≤±10%
Output repeat	Rj<10%
Error of expected energy and practical energy	≤±20%
Spot diameter	1-4mm adjustable
Focus error	≤±0.5mm
Pc output power of collimate laser	0.1mW≤Pc≤5mW
Adjustable range of Joints arm	Horizontal ≥45º Uprightness 60cm-80cm

Brief Introduction of q switched nd yag laser:

This Q switch ND:YAG Laser equipment is designed and manufactured in full compliance with relevant national safety standards of laser medial equipment and quality inspection requirements, has reached the international advanced level.

This machine adopts the advanced optical technology and components from Korea, multifunctional microcomputer control system, adjustable spot size laser lens, which can do various treatments of tattoo and pigmented lesions removal, laser toning and so on.

Treatment scope:

Tattoo removal: perfect performance on all kinds of color tattoo removal

Pigment deposit dispelling

Skin rejuvenation

Eliminates the age pigment, spot, birthmark, and pigment changes

Principle of Therapy
Therapy of epidermis and dermis pigmentation-----Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the dermis which includes amount of pigment mass. Since the laser pulses in nanosecond but with super high energy, the shot pigment mass swell quickly and breaks into small pieces, which will be eliminated through metabolic system.

Intervals Pulsed Q Switched Nd Yag Laser Equipment For Clinic Working 1

Therapy of the dilatation of capillary vessel---- Utilizing the heat effect of the Nd: Yag Laser, the laser is absorbed by the hemachrome in the capillary vessel, then the capillary vessel become blocked and disappear.

Intervals Pulsed Q Switched Nd Yag Laser Equipment For Clinic Working 2

Treatment result pictures:

Maintenance

1.The system contains dedicate laser generator and electrical components. Heavily Shock and extrusion is not allowed when operating and storing the system. After each treatment, The joints arm should put on the original place. Use the dust-proof cloth to cover the system.

2.Clean the lens of the joints arm with the no water alcohol after each treatment. The lens is at the tip of the joints arm. Revolve the handle to joints arm can get the lens.Warning: Do not check and clean the lens when the system is on power.

Calibration of the specifications

3.The calibration of the output:

1)Turn on the system

2)Adjust the light guide system, make the laser pulse can direct at the centre of the reaction interface of the energy calibrator.

3)When the system is at WORK status, Choose lowest Frequency(1Hz) to test the energy of the output.

4.The main body contains input protective fuse to avoid the system destroyed by the over loaded high voltage and high current of the power supply.

The step of change the broken fuse: The fuse is at the back side of the main body. Loose the fuse cap and take off the broken fuse.

5.If the environmental temperature change too much, the explosive power will reduce, and at the same time, the thermal efficiency will increase. Then emit the laser to the printing paper. If there is smoke rise from the paper, the operator must ask the technician to check the optical-electrical switch.

6.When the error value between practical output and expected output is ≥±20%. The calibration
