| Place of Origin: | Beijing, China |
| Brand Name: | NUBWAY |
| Certification: | CE |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Aluminum Package |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 150-200 Sets /Month |

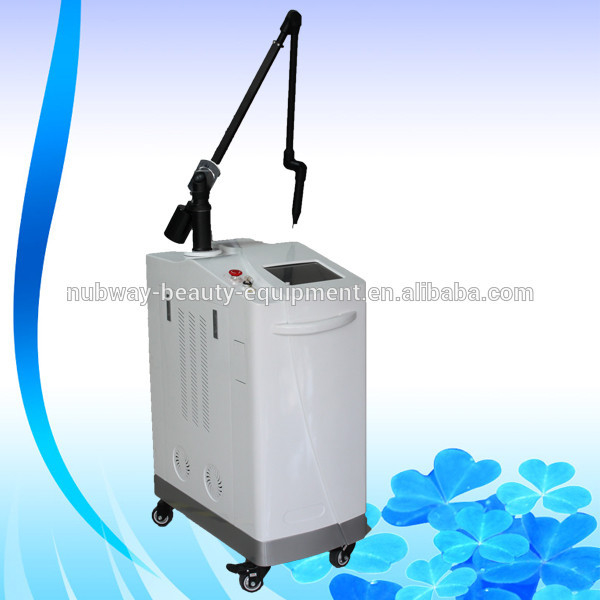

Technical Features
1. 7 jointed arm delivery system, make it easy for longtime treatment
2. Two handpieces choice bade on different treatment mode
3. Red diode laser beam point, find the right treatment area exactly
4. Motor drived auto-switching with 1064/532nm wavelength change
5. Operation and parameter adjustment with color touch screen
Applications
1) Removal tattoo, eyeliner, eye brow, remove black, red, blue, and all kinds of color pigment,
2) Remove dermis spot, fleck, black nevus, age pigment, birthmark and Nevus of Ota
3) The 1064nm wavelength mainly for black, blue, cyan pigment
4) The 532nm wavelength mainly for red, coffee, brown pigment
Technology Parameter
|
Dimensions |
920× 555 ×1065mm not including joints arm |
|
Weight |
100kg |
|
Wastage power |
800VA |
|
Fuse |
220V, 10A |
|
Output mode |
Q-switch Pulsed output |
|
Wavelength |
1064nm, 532nm |
|
Pulse Duration |
10±3ns |
|
Frequency |
1Hz, 2Hz,5Hz |
|
Single Pulse energy |
250mJ-1500mj |
|
Safety distance |
NOHD 1km. Operator must wear goggles |
|
Cooling system |
Water cooled |
|
Work mode |
Continually work with intervals |
|
Spot Size |
Continually adjustable |
|
Energy of single pulse |
250mj-1500mj |
|
Unstable output range |
ST≤±10% |
|
Output repeat |
Rj<10% |
|
Error of expected energy and practical energy |
≤±20% |
|
Spot diameter |
1-4mm adjustable |
|
Focus error |
≤±0.5mm |
|
Pc output power of collimate laser |
0.1mW≤Pc≤5mW |
|
Adjustable range of Joints arm |
Horizontal ≥45o Uprightness 60cm-80cm |
WHAT: YAG laser delivers specific wavelengths with high energy
WHY: Which can be absorbed by the pigment in the tattoo and result in a shockwave
HOW: Shockwave shatters the pigment particles, releasing them from their encapsulation and breaking them into fragments small enough for removal by the body
Highlight: NO INJURY to skin and normal tissues will occur
