Specification:
|
Laser type
|
Semiconductor laser
|
|
wavelength
|
808 nm
|
|
Output Mode
|
pulse output
|
|
Control Method
|
Touch control
|
|
Screen Size
|
10.4 Inch
|
|
Energy density
|
10-75J/cm2 (Deviation≤±2%)
|
|
Pulse width range
|
1-400ms
|
|
Spot size
|
12*20mm
|
|
Frequency
|
1-10HZ
|
|
Light spot surface temperature
|
0-30°C
|
|
Cooling System
|
Semiconductor+built-in water+Air Cooling triple cooling systems
|
|
Dimension
|
500×425×1120mm
|
|
Net weight
|
60kg
|
|
Fuse specification
|
Ø5×2510A
|
|
Input Power
|
1800W
|
|
Power
|
AC220V±10% 10A 50HZ , 110v±10% 10A 60HZ
|
Advantages
1)Top Quality Head whith 20 million shots
10 Germany inported ,output power can reach 600w , has 20 million shots warranty;
Germany original imported medical use pipe more durable , more professional .
Spot size=12mm*20mm=2.4cm² , total energy output 24J~168J , average energy 10~70J/cm²
Shot time warranty (max energy,max frenquency): 20 millions
10 germany "dilars" diode laser bar inside . Total output 600w , 60w for each laser bar .
Truly strong output energy with honest parameter,result video for you avalable for you if you want.
YOUTUBE TEST VIDEO: https://www.youtube.com/watch?v=kwjFT4JsM5o
Unique 12*20mm big spot size , save much treatment time
(other supplier is 12*10/12*12... Nubway spot size is exclusive in China);

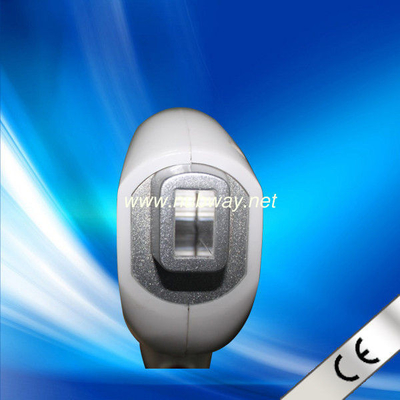

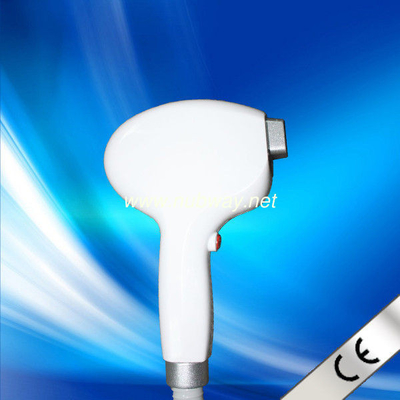

Germany imported handle pipe , more professional , good flexibility
2)Super Cooling System
Semiconductor+ Water+ Air Cooling triple cooling systems
10L big water tank, booster pump, ensure good water circulation;
2 big Copper Radiator ,better heat conduction than the Aluminum ;
4 big DC fans , big wind , the heat can be soon disappeared ;
Two fiters to filter both impurities and ion, increase the lifetime of bar
Strong cooling system guarantee our machine can last working for 24 hours
